OKM EXP 5000

Gold en Treasure detector EXP 5000

The eXp 5000 is one of the best metal detectors available from OKM’s “Future Series”, a line of high end metal detectors and ground scanners with graphical 3d capabilities to visualize hidden underground objects. Whether it is gold, silver or simply iron the Earth Imager “eXp 5000″ detects deeper than simple metal detectors.

Made in Germany – built with German precision

Made by OKM Locating Technology – one of the largest manufacturer of metal detectors and professional metal detecting instruments

The gold detector eXp 5000 is specially made for the following purposes:
- metal detection
- professional treasure hunting
- archaeological work
- gold hunting
- grave and tomb localization
- industrial needs
- underground surveys
- geophysical work

The EXP 5000 works with Visualizer 3d metal detector software

3d scan with metal detector eXp 5000

3d scan images of the underground showing voids and metals

Professional 3d imaging software to visualize the underground and its buried treasures, chests, hidden rooms or underground chambers. This 3d metal detector software is for professional analysis of the measured data on a pc. The 3d software of the multi-task metal detector eXp 5000 is a must for archaeological explorations and treasure expeditions.

3d scan image of metal box scanned with eXp 5000


3d scan images of underground
Visualize buried targets and voids
Analyse exact position and depth
Locate accurate anomalies
Multi-lingual software

Gold coins discovery in Middle East

Gold coins discovery in Middle East with eXp 5000 treasure detector

 Deep search up to 80 feet with 3d metal detector eXp 5000. Thousands of rings, coins, jewelry and hidden treasures still wait to be discovered. Find buried treasure – gold – silver – precious metals – tunnels or tombs with 3d earth imager eXp 5000.

Click here to see metal detector accessories for eXp 5000
Super sensor – Antenna for tunnel detection – Antenna for metal discrimination – livestream antenna – GPR antennas and much more

Metal detector basic or pro packages available for basic or professional use! Or the gold edition package optimized for gold seekers and treasure hunters!

Operating Modes

The 3d earth imager eXp 5000 offers many different operating modes to work with.

Magnetometer

With an integrated magnetometer you can research the ground by using the magnetic field of the earth. This mode is very usefull to locate easily small metallic objects like coins, rings etc. which are situated near to the surface. The maximal penetration depth in this mode is about 2 meters.

Can be operated with:
GPR antennas (25, 50, 75, 100 cm), Super sensor, Antenna for tunnel detection, Livestream sensor

Ground Scan operating mode screen shot eXp 5000

Ground Scan

The Ground Scan can be adjusted individually and can create a visual representation of the measured data. Max. 100 different graphical representations can be stored in the internal memory. In this mode the eXp 5000 calculates a complete scan image of the underground structure in 3d and can additionally store GPS data. The detection of voids and targets up to a depth of 25 meters is possible, as well as the determination of position and depth of located objects. Due to the automatic sensor identification and storage of the time and date of each scan, all measured data can be analysed accurately. New feature: Usage of livestream sensor in Ground Scan mode for 4x better resolution.

Can be operated with:
GPR antennas (25, 50, 75, 100 cm), Super sensor, Antenna for tunnel detection, Livestream sensor



Metal detector operating mode eXp 5000

Metal Detector

In this operating mode a powerfull metal detector can be connected and so discriminate between different types of metal. This detector is optional to the basic package. A discrimination of iron, gold, silver and aluminium is possible up to a depth of 2 meters.

Can be operated with:
DDV system

Discrimination mode screenshot of eXp 5000

Discrimination

By using the Supersensor it is possible to distinguish between precious and nonprecious metals as well as cavities. The metal discrimination is possible up to a depth of 25 meters.

Can be operated with:
Super sensor

Thermograph view in video eyewear of eXp 5000

Thermograph

By the help of FS-Thermoscan differences in temperature on the surface of the ground can be located. So warm and cold areas can be determined and it is possible to conclude to conclude to voids and other anomalies. In the operating mode Thermograph you can work in live time with the FS-Thermoscan, and recognize immediately the differences in temperature on the surface of the ground and so can locate hidden voids.

Can be operated with:
FS-Thermoscan



Thermoscan view of video eyewear of eXp 5000

Thermoscan

By the help of FS-Thermoscan differences in temperature on the surface of the ground can be located. So warm and cold areas can be determined and it is possible to conclude to conclude to voids and other anomalies. In the mode Thermoscan you can create graphical infra red images to visualize the distribution of temperatures of a field.

Can be operated with:
FS-Thermoscan



Livestream image view in video goggles of eXp 5000

Livestream

The Livescan shows the image of the underground in real time in the video eyeglasses of the eXp 5000. The scan width (horizontal) is 50 cm. By using the Livestream sensor metals and voids up to 25 meters become visible.

Can be operated with:
Livestream sensor

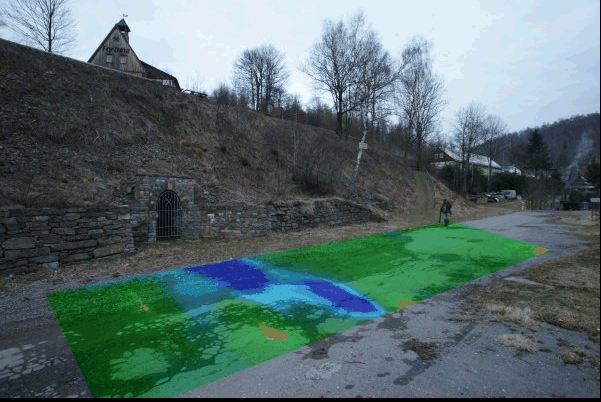

This measurement has been made to search for a hidden gallery. In the photo an entry of another gallery is visible. The owner of this terrain wanted to find out if there are other hidden galleries in the surrounding area of this known gallery, where possible targets could be hidden inside.

The OKM team was been engaged to inspect this area with its geophysical measuring instruments and metal detectors. Due to the eXp 5000 and control scans of other OKM metal detectors another possible gallery could be located right in front of this known entry. The blue color visible in the scan image shows the course of the detected gallery and the aprox. size of the void.

QUICK INFO:
Detected item:
gallery
Depth: measured depth aprox. 8m
Diameter: about 1,50 meters
Type of soil: concrete, stony, rocky ground
Measure equipment: eXp 5000 + Antenna for tunnel detection



FAQ’s

Here you can find the answers to all important questions which has been arised about the usage, features and characteristics of the metal detector eXp 5000. Anyway, if there is still something what you like to know about this gold detector please contact us by email sales@golddetector-3D.com or call our hotline: +31 248443430 The OKM team of experts will assist you to clarify all concerns regarding the eXp 5000. You can be sure that no question will be left unanswered.

What is different between a simple metal detector and the eXp 5000?

The general difference between a simple metal detector and eXp 5000 is the integrated technology. Due to the combined technologies of radar components, gradiometers and metal detectors, the eXp 5000 is able to detect deeper than any standard metal detector. Another difference is that the eXp 5000 does not only offer an accoustical featback, it is able to create a visual representation of the scanned underground and represent it in a 3d image on a special software program. So it is possible for the prospector to find out the size, the depth and the position of objects and voids under the ground. The eXp 5000 is not only a metal detector, it also can locate other anomalies under the ground, like voids (tunnels, graves, chambers, rooms, pipelines, bunkers, chests etc.) as well as unnatural underground anomalies like wells, stones, statues, stonework or foundations or large water deposits under the surface.

What can I use the eXp 5000 for?

The detector eXp 5000 can be used for various locating tasks such as treasure hunting, archaeological work, industrial needs, metal detecting, gold detecting, tomb and grave detection, historical research, professional ground analysis and much more.

Can the eXp 5000 discriminate between different kind of metals?

Yes, there are several discriminators available. The Super Sensor can differentiate between ferrous and non-ferrous metals in high depth. The DDV-System is a high performing metal detector with visual representation which discriminates between specific materials like gold, silver and iron.

Is it possible to metal detect hidden treasures very deep under the ground surface?

Earth Imagers like the eXp 5000 are precise metal detecting devices which are able to locate objects much deeper than standard metal detectors can do. Even non-metallic structures like wooden chests, tunnels and caves are detectable. By using the metal detecting software the approx. depth of hidden objects can be determined.

How difficult is the usage of this professional 3d metal detector?

The usage is not very difficult but different compared to usual metal detectors. Anyone can learn how to use this device. You have to get familiar with the correct usage and it is of advantage if you know how to work on a pc. A free training lesson can be optained after arrangement in our company.

Since when Earth Imagers with graphical display are available?

The first professional Earth Imager “Localizer 3000” with attached graphical display and immediate graphic output has been on the market since 2003. In the following years innovative products like “eXp 3000” and its current successor “eXp 4000” has been brought to metal detector markets. A lot of copycat devices glut the market those days. The eXp 5000 is the top of the range of all developed earth imager products.

How to work with eXp 5000 to locate hidden treasures?

In general the principle of scanning and evaluating an area is simple. In the first place you “walk” over an area of any size. During that “walk” the gold detector scans the ground and collects underground information which will be pre-calculated and displayed immediately on the video eyewear of the metal detecting device. In that way you can see hidden objects and structures while still scanning the subsurface of your area. After transferring the collected data to any computer with the special metal detector software and some post-calculating advanced analysis are possible. That can be the determination of depth, size and position of detected objects, voids or other anomalies.

How metals are visible in the 3d scan image?

In general metallic objects are represented in red color in the 3d image. Such metallic objects can be ferrous metals like iron, steel or nonferrous metals like gold, silver, aluminium. These red color values should be surrounded by green or blue color values and should be clearly visible inside the scan image.

Do I really need a laptop to work with eXp 5000?

No. All measured results are visible in the video eyeglasses on-site. The laptop is only an option. The scans can be stored in the internal memory of the eXp 5000 and optionally transferred later to a connected pc for detailed analysis. You can also work only with the main unit, the laptop is not a must.

How do I get a 3d graphic of the underground with the eXp 5000?

Simply scan a specific area of interest with the metal detecting instrument eXp 5000 in the given manner. After a few moments you will get the image calculated by the device from your measured data.

How can I be sure if there is a metal or just a mineralization in the ground?

Some small mineralizations will be filtered out by some antennas of eXp 5000. Heavy mineralizations are usually not in red color, they can be visible in orange or yellow color in the 3d image of the underground. To find out between metal and mineral several control measurements are necessary to compare the measured results. By using the function Interpolation inside the Visualizer 3d software you can find out if the signal points to a possible metal. Other important hints are the depth indication, the color filter and the form of the signals.

3d scan image of mineralized ground 3d scan image showing a metal finding
Mineralization Metal

How does the vlf emitters influence my scan result?

The vlf emitters can be used optionally to the eXp 5000 to improve the scan results. They have to be placed on the surface of the ground in each corner of the scan field. They are a big help to locate metallic targets in difficult ground conditions and increase the depth penetration. So the gold seeker is able to find small objects situated deeper under the ground.

Can I find the depth of located targets?

Yes, due to the professional Visualizer 3d software for metal detecting instruments of OKM it is possible to analyse professionally the scan results. So you can determine the depth of located targets or voids according to the soil type in your area. The depth indication in the software is possible in meter, feet or inches.
